Citrix : Slow Login, Profile Cleanup Script

Ran into a strange issue today with two Citrix servers, both suddenly started to exhibit extremely long logins of ~3 minutes – this initially meant that users could not access any published applications on the servers due to the default LogoffCheckerStartupDelayInSeconds timeout of 60 seconds. Sessions would start, hang at the “Welcome” stage of the Citrix application startup and then the session would terminate after 60 seconds.

We modified this registry key to 180 seconds and applications would then launch, workaround in-place, but what was really causing the issue?

After a LOT of troubleshooting it was discovered that there were 100+ profile folders on the servers. We scripted cleanup of these profiles using the script below, login times dropped to ~25 seconds.

Categories
Presentation Server

Citrix : Enable Session Time Zone Redirection

Citrix : Enable Session Time Zone Redirection

It may be that like me, you have Citrix servers in one time zone and users in another. It is possible to configure per-session time zones based upon the connecting client device time zone. I have tested this with XenApp 5.0 running on Windows Server 2003 R2 x64 SP2, with clients connecting via Citrix Online client v10 & 11, RDP and Itium thin client devices.

First you need to add the following registry entries on each server:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Citrix\CtxHook\AppInit_Dlls\PerSessionTimeZone]
“FilePathName”=”tzhook.dll”
“Flag Data Type”=dword:00000004
“Settings Data Type”=dword:00000001

Next, in Group Policy enable Time Zone redirection:

Computer Configuration >  Windows Components > Terminal Services > Cliet / Server Data Redirection > Allow Time Zone Redirection > Set to Enabled

Finally, in a Citrix policy:

HDX Plug and Play >  Time Zones > DoNot Use Clients’ Local Time >Disabled

This requires no reboots of any kind, a new session logon should show that the redirectionis working.

Categories
Presentation Server

Citrix : LMC Authentication Error

Citrix : LMC Authentication Error

On opening the LMC you may receive the following error:
   “You did not authenticate correctly. Please try again or contact your System Administrator.”

To resolve this review the users listed in the following configuration file:
   %ProgramFiles%\Citrix\Licensing\LMC\Tomcat\conf\tomcat-users.xml

I experienced this error after migrating an administartive user account to a new domain, the account definition in the xml file was listed under the old domain. Modifying the old domain NETBIOS name to match the new domain NETBIOS name resolve the authentication issue.

It may be necessary to restart the Citrix Licensing Service after modification of the file.

Categories
Presentation Server

Citrix : The RPC server cannot be contacted on server .

Citrix : The RPC server cannot be contacted on server .

This issue has plague me infrequently over the last 3 – 6 months – a Citrix server in a PS4.5 farm would suddenly be unable to use the Citrix Access Management Console as when the discovery process was running it would report:

 The RPC server cannot be contacted on server .

The solution for this is simple. If the IMA Service has been restarted or terminated unexpectantly the Citrix COM+ components will sometimes fail to refresh. To resolve this perform te follwoing steps:

  • Terminate ConfigMgrSvc.exe’ using Task Manager
  • Re-open the Citrix Access Management Console and Run Discovery.

 Further information is availabke here: http://support.citrix.com/article/CTX116752

Categories
Presentation Server

Citrix / Terminal Server Performance Registry Settings

Terminal Server / Citrix Performance Registry Settings

I have gathered a list of registry and operating system tweaks that improve Citrix performance. I use these tweaks on all Citrix servers deployed in order to ensure reliable performance when under heavy user load.



Registry Modifications

Firstly, we disable paging of the NT Executive – this keeps core system components in memory and out of the page file. If there is only one tweak you take away with you today, this should be it:

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanWorkStation\Parameters]
“UtilizeNTCaching”=dword:00000000



Next, I configure addition worker threads to increae available CPU threads to users:

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Executive]
“AdditionalCriticalWorkerThreads”=dword:00000016
“AdditionalDelayedWorkerThreads”=dword:00000016



Now we increase the functionality of the lanmanserver service which controls file and print resource / access on the server:

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Lanmanserver\Parameters]
“MaxWorkItems”=dword:00002004
“MaxMpxCt”=dword:00000800
“MaxRawWorkItems”=dword:00000200
“MaxFreeConnections”=dword:00000064
“MinFreeConnections”=dword:00000020

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanServer\Parameters]
“IRPStackSize”=dword:0000000f



Now we configure the lanmanworkstation service which is the file and print client:

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\LanmanWorkstation\Parameters]
“MaxThreads”=dword:000000ff
“MaxCollectionCount”=dword:0000ffff
”MaxCmds”=dword:00000800



Operating System Configuration

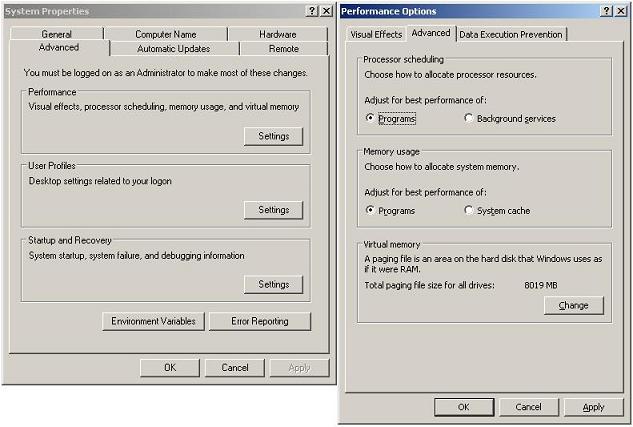

Firstly, change the server processing scheduling and memory usage bias towards programs:



Next change the performance bias on the network file and print sharing fr Microsoft networks to maximaise data throughput for network applications:





Categories
Presentation Server

Troubleshooting Citrix Session Poor Response / High Latency

Troubleshooting Citrix Session Poor Response / High Latency

I was recently tasked with troubleshooting very poor performance on a Citrix Presentation Server 4.5 Advanced Edition Farm.

Hardware Requirements

Your first port of call should be server specification: is the server ‘man’ enough for the task being asked of it? Use the built-in Windows Performance Counters to troubleshoot here.

Check you CPU usage and troubleshoot specific processes if your CPU utilisation is very high. For my environment CPU usage was at < 5%; this was not the governing performance issue.

Memory utilisation can also hinder performance. As a Citrix server runs out of RAM the number of pages /second dramatically increase. Memory usage was circa 50% and the number of pages /second was low.

Network utilisation; whilst ICA is a low-bandwidth application other applications on your environment may be increasing network latency due to saturation of the network link. Use the built-in Windows Performance counters and your switch management tools to ascertain if this is your governing issue. For my environment network usage was < 5% on a 100MB Full-Duplex link.

Network Problems

Are there specific problems with your network that are causing peaks in latency and dropped packets?

Using the Metaframe Servers SDK (MFCOMSDK) v2.3 tool; smcconsole.exe I was able to monitor individual user sessions.



Using this tool you can view individual sessions bandwidth utilisation and latency. This tool is incredibly useful when troubleshooting issues regarding session performance. Session latency can also be viewed using the WMI performance counters for ICA Session that are installed when Citrix is installed on a Windows Server.



The Metaframe Server SDK version 2.3 is available from here

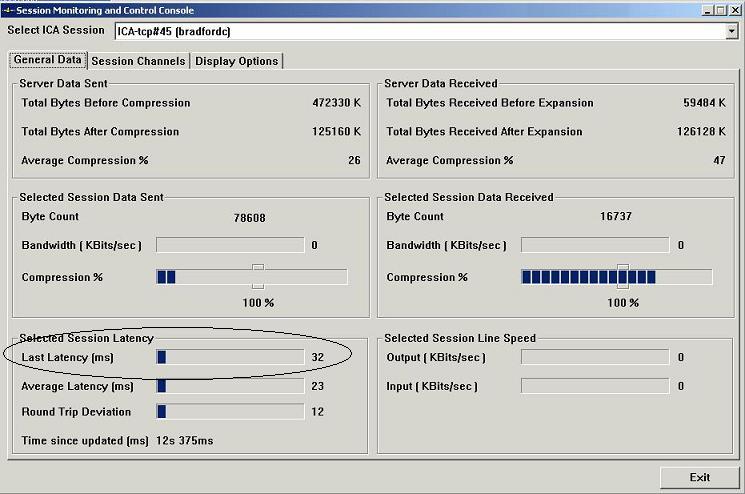

The image above shows a latency figure of 32ms. This equates to 0.03 seconds – a more than acceptable latency figure for an ICA session. When troubleshooting my issues I was receiving figures of 27000ms (yes, 27 seconds!).
